# 114. Flatten Binary Tree to Linked List(M)
Given the `root` of a binary tree, flatten the tree into a "linked list":
* The "linked list" should use the same `TreeNode` class where the `right` child pointer points to the next node in the list and the `left` child pointer is always `null`.
* The "linked list" should be in the same order as a [**pre-order traversal**](https://en.wikipedia.org/wiki/Tree_traversal#Pre-order,_NLR) of the binary tree.
**Example 1:**
```

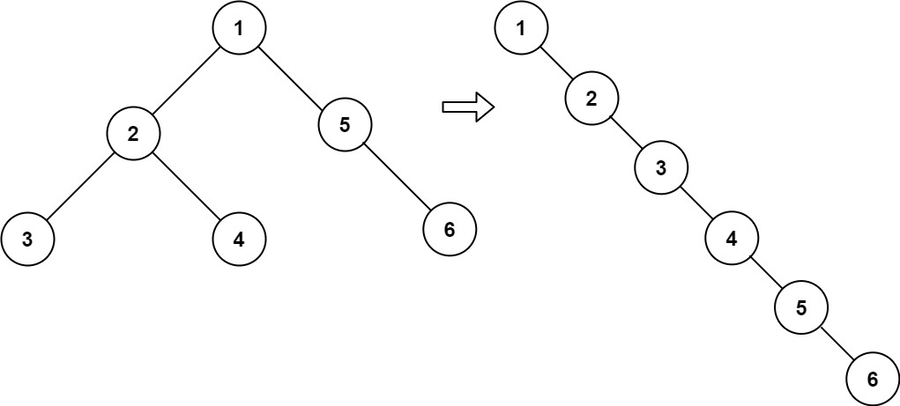

Input: root = [1,2,5,3,4,null,6]
Output: [1,null,2,null,3,null,4,null,5,null,6]
```
**Example 2:**
```
Input: root = []
Output: []
```
**Example 3:**
```
Input: root = [0]
Output: [0]
```
**Constraints:**
* The number of nodes in the tree is in the range `[0, 2000]`.
* `-100 <= Node.val <= 100`
**Follow up:** Can you flatten the tree in-place (with `O(1)` extra space)?
### Solution 1:
我们尝试给出这个函数的定义：
**给 `flatten` 函数输入一个节点 `root`，那么以 `root` 为根的二叉树就会被拉平为一条链表**。
我们再梳理一下，如何按题目要求把一棵树拉平成一条链表？很简单，以下流程：
1、将 `root` 的左子树和右子树拉平。
2、将 `root` 的右子树接到左子树下方，然后将整个左子树作为右子树。
[](https://labuladong.github.io/algo/images/%e4%ba%8c%e5%8f%89%e6%a0%91%e7%b3%bb%e5%88%97/2.jpeg)
上面三步看起来最难的应该是第一步对吧，如何把 `root` 的左右子树拉平？其实很简单，按照 `flatten` 函数的定义，对 `root` 的左右子树递归调用 `flatten` 函数即可：
```java
// 定义：将以 root 为根的树拉平为链表
void flatten(TreeNode root) {
// base case
if (root == null) return;
flatten(root.left);
flatten(root.right);
/**** 后序遍历位置 ****/
// 1、左右子树已经被拉平成一条链表
TreeNode left = root.left;
TreeNode right = root.right;
// 2、将左子树作为右子树
root.left = null;
root.right = left;
// 3、将原先的右子树接到当前右子树的末端
TreeNode p = root;
while (p.right != null) {
p = p.right;
}
p.right = right;
}
```
```
// 3、将原先的右子树接到当前右子树的末端
TreeNode p = root;
while (p.right != null) {
p = p.right;
}
```
**这段就是让原右子树接到原左子树的末尾**
[](https://camo.githubusercontent.com/6927c507572d675aeb861a146b8bc1d1cca18166d38f237b819052e595530298/68747470733a2f2f6c6162756c61646f6e672e67697465652e696f2f616c676f2f696d616765732f2565342562612538632565352538662538392565362561302539312565372562332562622565352538382539372f322e6a706567)
* 具体到这张图的话, 也就是让`5`接到`4`后面
* 如果**不用**`while`循环, 则`5`会直接接到`2`的后面, 这样点话`3`和`4`就丢失
你看，这就是递归的魅力，你说 `flatten` 函数是怎么把左右子树拉平的？说不清楚，但是只要知道 `flatten` 的定义如此，相信这个定义，让 `root` 做它该做的事情，然后 `flatten` 函数就会按照定义工作。另外注意递归框架是后序遍历，因为我们要先拉平左右子树才能进行后续操作。
### Solution 2: (Non-recursive pre-order traversal)
```
{
Stack stack = new Stack<>();
stack.push(root);
while (!stack.empty()) {
TreeNode node = stack.pop();
if (node.right != null) {
stack.push(node.right);
}
if (node.left != null) {
stack.push(node.left);
}
// connect
node.left = null;
if (stack.empty()) {
node.right = null;
} else {
node.right = stack.peek();
}
}
```
### Other Solution:
---
