# 106. Construct Binary Tree from Inorder and Postorder Traversal  (M)

https\://leetcode.com/problems/construct-binary-tree-from-inorder-and-postorder-traversal/

Given two integer arrays `inorder` and `postorder` where `inorder` is the inorder traversal of a binary tree and `postorder` is the postorder traversal of the same tree, construct and return *the binary tree*.

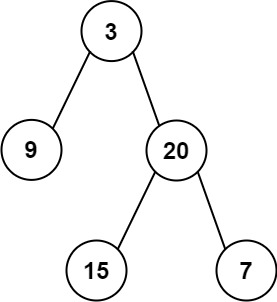

**Example 1:**

![](https://assets.leetcode.com/uploads/2021/02/19/tree.jpg)

```
Input: inorder = [9,3,15,20,7], postorder = [9,15,7,20,3]
Output: [3,9,20,null,null,15,7]
```

**Example 2:**

```
Input: inorder = [-1], postorder = [-1]
Output: [-1]
```



**Constraints:**

* `1 <= inorder.length <= 3000`
* `postorder.length == inorder.length`
* `-3000 <= inorder[i], postorder[i] <= 3000`
* `inorder` and `postorder` consist of **unique** values.
* Each value of `postorder` also appears in `inorder`.
* `inorder` is **guaranteed** to be the inorder traversal of the tree.
* `postorder` is **guaranteed** to be the postorder traversal of the tree.

### Solution:

Very similar to LeetCode 105,

这样的遍历顺序差异，导致了 `preorder` 和 `inorder` 数组中的元素分布有如下特点：

[![](https://labuladong.github.io/algo/images/%e4%ba%8c%e5%8f%89%e6%a0%91%e7%b3%bb%e5%88%972/5.jpeg)](https://labuladong.github.io/algo/images/%e4%ba%8c%e5%8f%89%e6%a0%91%e7%b3%bb%e5%88%972/5.jpeg)

这道题和上一题的关键区别是，后序遍历和前序遍历相反，根节点对应的值为 `postorder` 的最后一个元素。

整体的算法框架和上一题非常类似，我们依然写一个辅助函数 `build`：

```java
TreeNode buildTree(int[] inorder, int[] postorder) {
    return build(inorder, 0, inorder.length - 1,
                 postorder, 0, postorder.length - 1);
}

TreeNode build(int[] inorder, int inStart, int inEnd,
               int[] postorder, int postStart, int postEnd) {
    // root 节点对应的值就是后序遍历数组的最后一个元素
    int rootVal = postorder[postEnd];
    // rootVal 在中序遍历数组中的索引
    int index = 0;
    for (int i = inStart; i <= inEnd; i++) {
        if (inorder[i] == rootVal) {
            index = i;
            break;
        }
    }

    TreeNode root = new TreeNode(rootVal);
    // 递归构造左右子树
    root.left = build(preorder, ?, ?,
                      inorder, ?, ?);

    root.right = build(preorder, ?, ?,
                       inorder, ?, ?);
    return root;
}
```

现在 `postoder` 和 `inorder` 对应的状态如下：

[![](https://labuladong.github.io/algo/images/%e4%ba%8c%e5%8f%89%e6%a0%91%e7%b3%bb%e5%88%972/6.jpeg)](https://labuladong.github.io/algo/images/%e4%ba%8c%e5%8f%89%e6%a0%91%e7%b3%bb%e5%88%972/6.jpeg)

我们可以按照上图将问号处的索引正确填入：

```java
int leftSize = index - inStart;

root.left = build(inorder, inStart, index - 1,
                  postorder, postStart, postStart + leftSize - 1);

root.right = build(inorder, index + 1, inEnd,
                   postorder, postStart + leftSize, postEnd - 1);
```

综上，可以写出完整的解法代码：

```java
TreeNode build(int[] inorder, int inStart, int inEnd,
               int[] postorder, int postStart, int postEnd) {

    if (inStart > inEnd) {
        return null;
    }
    // root 节点对应的值就是后序遍历数组的最后一个元素
    int rootVal = postorder[postEnd];
    // rootVal 在中序遍历数组中的索引
    int index = 0;
    for (int i = inStart; i <= inEnd; i++) {
        if (inorder[i] == rootVal) {
            index = i;
            break;
        }
    }
    // 左子树的节点个数
    int leftSize = index - inStart;
    TreeNode root = new TreeNode(rootVal);
    // 递归构造左右子树
    root.left = build(inorder, inStart, index - 1,
                        postorder, postStart, postStart + leftSize - 1);

    root.right = build(inorder, index + 1, inEnd,
                        postorder, postStart + leftSize, postEnd - 1);
    return root;
}
```

有了前一题的铺垫，这道题很快就解决了，无非就是 `rootVal` 变成了最后一个元素，再改改递归函数的参数而已，只要明白二叉树的特性，也不难写出来。

最后呼应下前文，**做二叉树的问题，关键是把题目的要求细化，搞清楚根节点应该做什么，然后剩下的事情抛给前/中/后序的遍历框架就行了**。
