# 543. Diameter of Binary Tree

Given the `root` of a binary tree, return *the length of the **diameter** of the tree*.

The **diameter** of a binary tree is the **length** of the longest path between any two nodes in a tree. This path may or may not pass through the `root`.

The **length** of a path between two nodes is represented by the number of edges between them.

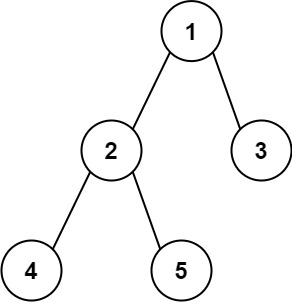

**Example 1:**

![](https://assets.leetcode.com/uploads/2021/03/06/diamtree.jpg)

```
Input: root = [1,2,3,4,5]
Output: 3
Explanation: 3 is the length of the path [4,2,1,3] or [5,2,1,3].
```

**Example 2:**

```
Input: root = [1,2]
Output: 1
```



**Constraints:**

* The number of nodes in the tree is in the range `[1, 104]`.
* `-100 <= Node.val <= 100`

### Solution:

现在让我求整棵树中的最长「直径」，那直截了当的思路就是遍历整棵树中的每个节点，然后通过每个节点的左右子树的最大深度算出每个节点的「直径」，最后把所有「直径」求个最大值即可。

最大深度的算法我们刚才实现过了，上述思路就可以写出以下代码：

```java
// 记录最大直径的长度
int maxDiameter = 0;

public int diameterOfBinaryTree(TreeNode root) {
    // 对每个节点计算直径，求最大直径
    traverse(root);
    return maxDiameter;
}

// 遍历二叉树
void traverse(TreeNode root) {
    if (root == null) {
        return;
    }
    // 对每个节点计算直径
    int leftMax = maxDepth(root.left);
    int rightMax = maxDepth(root.right);
    int myDiameter = leftMax + rightMax;
    // 更新全局最大直径
    maxDiameter = Math.max(maxDiameter, myDiameter);

    traverse(root.left);
    traverse(root.right);
}

// 计算二叉树的最大深度
int maxDepth(TreeNode root) {
    if (root == null) {
        return 0;
    }
    int leftMax = maxDepth(root.left);
    int rightMax = maxDepth(root.right);
    return 1 + Math.max(leftMax, rightMax);
}
```

这个解法是正确的，但是运行时间很长，原因也很明显，`traverse` 遍历每个节点的时候还会调用递归函数 `maxDepth`，而 `maxDepth` 是要遍历子树的所有节点的，所以最坏时间复杂度是 O(N^2)。

这就出现了刚才探讨的情况，**前序位置无法获取子树信息，所以只能让每个节点调用 `maxDepth` 函数去算子树的深度**。

那如何优化？我们应该把计算「直径」的逻辑放在后序位置，准确说应该是放在 `maxDepth` 的后序位置，因为 `maxDepth` 的后序位置是知道左右子树的最大深度的。

所以，稍微改一下代码逻辑即可得到更好的解法：

```java
// 记录最大直径的长度
int maxDiameter = 0;

public int diameterOfBinaryTree(TreeNode root) {
    maxDepth(root);
    return maxDiameter;
}

int maxDepth(TreeNode root) {
    if (root == null) {
        return 0;
    }
    int leftMax = maxDepth(root.left);
    int rightMax = maxDepth(root.right);
    // 后序位置，顺便计算最大直径
    int myDiameter = leftMax + rightMax;
    maxDiameter = Math.max(maxDiameter, myDiameter);

    return 1 + Math.max(leftMax, rightMax);
}
```

这下时间复杂度只有 `maxDepth` 函数的 O(N) 了。


---
